No.

Item

Parameter

1

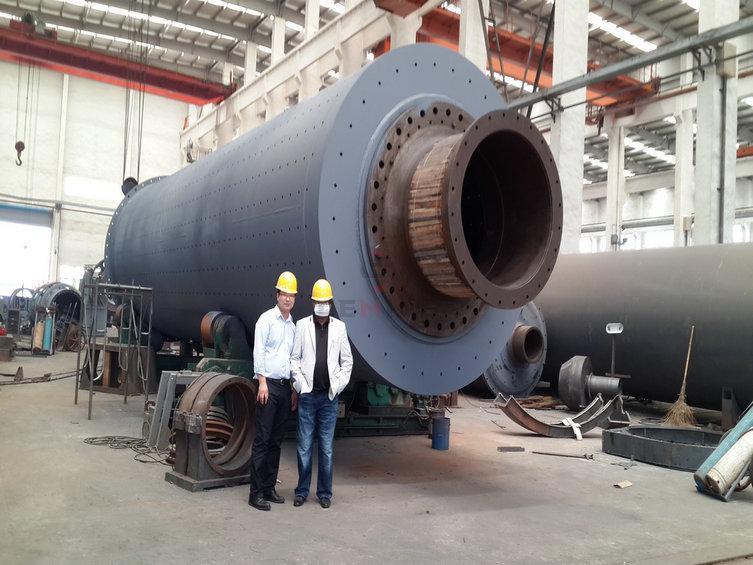

Ball Mill

Rotary speed

18.3 r/min

2

Motor

Model

YR1600-8/1430

Power

1600 kw

Rotary speed

743 r/min

Voltage

10000 V

Frequency

50 Hz

Supplier

Changsha Motors Factory Co., Ltdhttp://www.csdj.com.cn/en/introduce.html

3

Auxiliary motor

Model

Y225M-8

Power

22 kw

Voltage

440 V

Frequency

50 Hz

4

Reducer

Model

JDX10000

Ratio

6.3

Supplier

Jiangsu Shengong Machinery Manufacturing (Group) Co., Ltd http://www.jssgjt.cn/En_CoProfile.asp

4.1

Oil station for reducer

Model

XYZ-125G

Oil-supply pressure

≤0.4MPa

Nominal flow rate

125L/min

Oil-supply temp.

40±3ºC

Oil tank volume

1.6 m³

Filtering area

0.4m²

Heat transfer area

6m²

Cooling water consumption

11.25 m³/h

4.1.1

Electrical heater

Power

24 Kw

4.1.2

Motor

Model

Y112M-4

Power

4 KW

Rotary speed

1440 r/min

5

Auxiliary reducer

Model

ZSY280

Ratio

100

6

Gear

m=28, z=186, H=620

7

Pinion

m=28, z-29,  H-630

8

Liner

check drawings

9

Oil station for motor

Model

XYZ-16G

Oil-supply pressure

≤0.4MPa

Nominal flow rate

16L/min

Oil-supply temp.

40±3ºC

Oil tank volume

0.63m³

Filtering area

0.13m²

Heat transfer area

3m²

Cooling water consumption

1m³/h

9.1

Oil station electrical heater

Power

6 kw

9.2

Oil station motor

Model

Y90S-4

Power

1.1kw

Rotary speed

1450 r/min

10

High&low pressure oil station for bearing bush

Model

GXYZ-A2.5/40

10.1

Low-pressure system

10.1.1

pump

model

LBZ-40

Flow rate

40 L/min

Oil-supply pressure

≤0.4MPa

Oil-supply temp.

40±3ºC

10.1.2

motor

Model

Y100S-4, V1

Power

2.2 KW

Rotary speed

1440 r/min

Oil tank volume

1.2m³

10.2

High-pressure system

Filter precision

0.08-0.12 mm

Filter area

0.20 m²

Cooling area

5 m²

Cooling water consumption

3.6 m³/h

10.2.1

Electrical heater

Power

3×4 kw

10.2.2

pump

model

2.5MCY14-1B

Flow rate

2.5 L/min

Oil-supply pressure

≤31.5 MPa

10.2.3

Motor

Model

Y112M-6, B35

Power

2.2 KW

Rotary speed

940 r/min

11

Grinding media distribution

Total loading weight

125 T

11.1

1st chamber (steel balls)

Ф90

4 T

Ф80

10 T

Ф70

8 T

Ф60

5.8 T

11.2

2nd chamber (steel forgings)

Ф35×40

8.2 T

Ф30×35

10T

Ф25×30

8 T

11.3

3rdchamber(steel forgings)

Ф30×35

16 T

Ф25×30

30 T

Ф20×25

25 T

Dust Collector PPC96-6

Specification：PPC96-6

Air Volume Processed：40100m³/h

Total Filtering Area：557㎡

Chamber Quantity：6PCS

Filtering Bags:96PCS*8

Push Valve：6PCS

Push Valve Spec：3″

Compressed Air Consumption：1.8Nm³/min

Shanghai Lichao Electric Motor Co.,Ltd. http://en.shlichao.cn/.

Classifier  TS-7

Product Fineness:0-3

Air Volume:95000m³/h

Rotary Speed：120-240RPM

Main BearingMotor Power:55KW  Y250M-4

Max Capacity：50-85TPH

Fan Motor:200kw Y3152-4

Shanghai Lichao Electric Motor Co.,Ltd. http://en.shlichao.cn/.

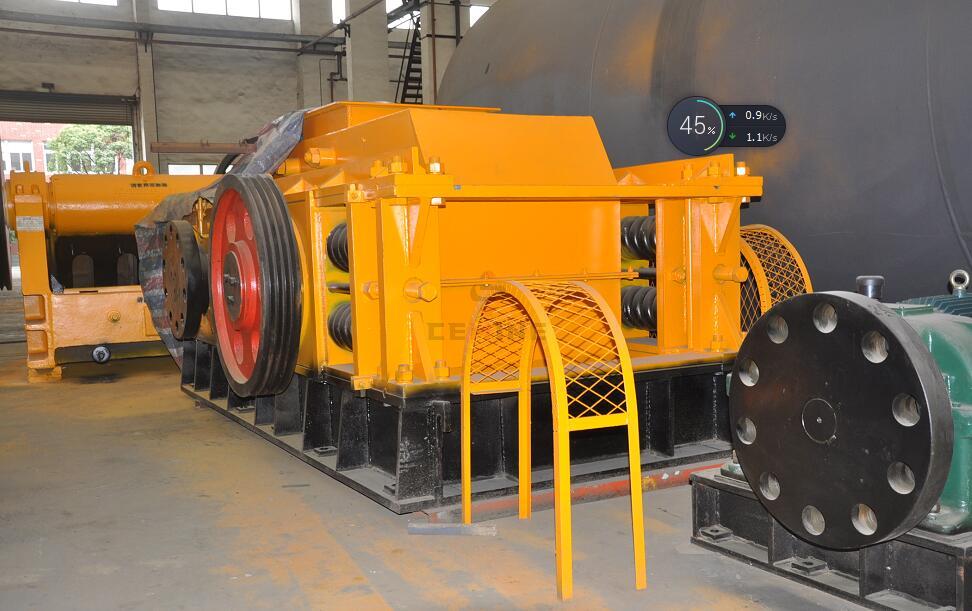

Roller Crusher                  Modle：2PG1200

Roller Dia:1200mm

Roller Width：750mm

Feed Size：＜90mm

Discharge Size：3-14mm

Capacity：50-80TPH

Feed Opening Size：800x600mm

Motor Power：45KWx2,Y225M-4

Overall Dimension:4537x3653x1478mm

Weight：17000kg

Shanghai Lichao Electric Motor Co.,Ltd. http://en.shlichao.cn/.
