Description

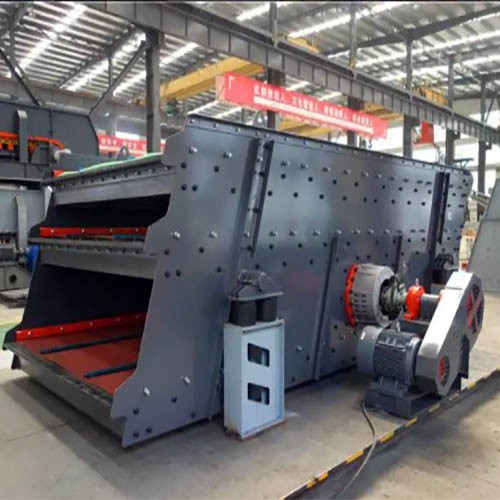

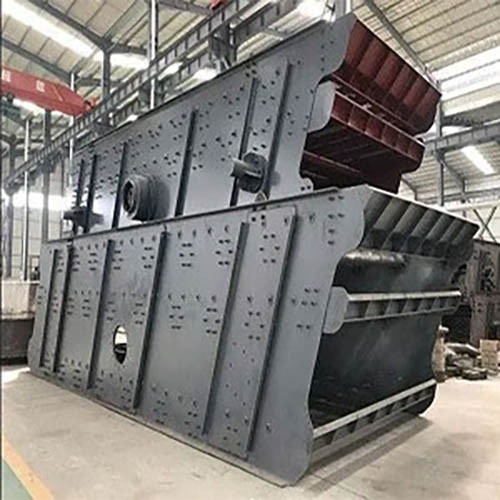

Round Vibrating Screen adopts eccentric shaft vibration exciter and eccentric block to adjust amplitude.The vibrator installed on the sideboard of screen box forces screen box to vibrate by the driving of motor.
Technical Parameter:
|
Model |
Layer Number |
Sieve (㎡)
|
Hole Size (MM) |
Max Feed Size(MM) |
Cpacity (m³/h) |
Vibration Frequency (R/MIN |
Bi-amplitude (MM) |
Power (KW) |
Net Inclination (°)
|
Net Spec. (CM) |
Weight (KG) |
|
2YK1225 |
2 |
6 |
4-50 |
400 |
8-60 |
800-970 |
8 |
5.5 |
20 |
120X250 |
2500 |
|
3YK1225 |
3 |
9 |
4-50 |
10-70 |
5.5 |
120X250 |
2850 |
||||
|
2YK1230 |
2 |
7.2 |
4-50 |
12-78 |
7.5 |
120X300 |
3000 |
||||
|
3YK1230 |
3 |
10.8 |
4-50 |
13-80 |
7.5 |
120X300 |
3600 |
||||
|
2YK1237 |
2 |
8.88 |
4-50 |
15-86 |
7.5 |
120X370 |
3600 |
||||
|
3YK1237 |
3 |
13.22 |
4-50 |
16-90 |
7.5 |
120X370 |
4200 |
||||
|
2YK1535 |
2 |
10.5 |
5-50 |
20-125 |
11 |
150X350 |
4890 |
||||
|
3YK1535 |
3 |
15.75 |
5-50 |
21-125 |
11 |
150X350 |
5700 |
||||
|
2YK1545 |
2 |
13.5 |
5-50 |
22-150 |
15 |
150X450 |
5330 |
||||
|
3YK1545 |
3 |
20.25 |
5-50 |
22.5-162 |
15 |
150X450 |
5800 |
||||
|
2YK1548 |
2 |
14.4 |
5-50 |
22.5-162 |
15 |
150X480 |
5980 |
||||
|
3YK1548 |
3 |
21.6 |
5-50 |
25-206 |
15 |
150X480 |
6600 |
||||
|
2YK1848 |
2 |
17.28 |
5-80 |
32-276 |
750 |
11 |
15 |
180X480 |
6080 |
||
|
3YK1848 |
3 |
25.92 |
5-80 |
32-312 |
800-970 |
8 |
18.5 |
180X480 |
7600 |
||
|
2YK1854 |
2 |
19.44 |
5-80 |
32-312 |
18.5 |
180X540 |
8150 |
||||
|
3YK1854 |
3 |
29.16 |
5-80 |
32-312 |
22 |
180X540 |
8840 |
||||
|
2YK2160 |
2 |
25.2 |
5-100 |
50-475 |
970 |
30 |
210X600 |
9780 |
|||
|
3YK2160 |
3 |
37.8 |
5-100 |
50-475 |
970 |
30 |
210X600 |
10800 |
|||
|
2YK2460 |
2 |
28.8 |
5-100 |
65-550 |
970 |
37 |
240X600 |
13600 |
|||
|
3YK2460 |
3 |
43.2 |
5-100 |
70-620 |
970 |
37 |
240X600 |
15600 |
