Description

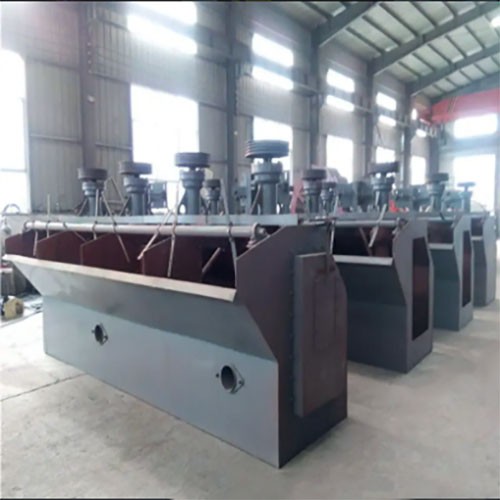

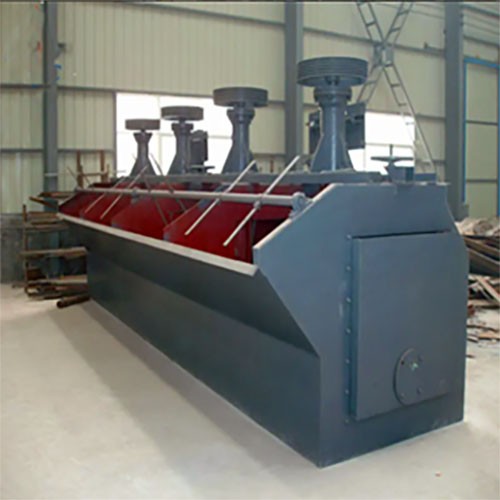

Flotation machines are new products developed by our company,according to decades of manufacturing experience。 It adopts forward curved tank and double impellers,equips with honeycomb duct. Therefore,slurry in the tank will cycle upward and downward in a fixed flow manner,which is helpful to the suspension of those coarse particles.Air and slurry are naturally sucked without need for foam pump.Besides,it can be used for sorting the non-ferrous metals,ferrous metals and non-metallic minerals.
Technical Parameter:
|
Model |
Volume (m³） |
Size of Tank (mm) |
Impeller Dia.(mm) |
Impeller Speed (r/min) |
Capacity (m³/min) |
Power (kw) |
Air Flow Sucked (m³/㎡.min) |
Unit Tank Weight (kg) |
|
SF-0.5 |
0.5 |
500X500X600 |
200 |
536 |
0.06-0.18 |
1.5/0.55 |
0.8-1 |
269 |
|
SF-0.37 |
0.37 |
700X700X750 |
296 |
296 |
0.2-0.4 |
1.5/0.55 |
0.8-1 |
468 |
|
SF-0.7 |
0.7 |
820X900X950 |
350 |
400 |
0.3-0.9 |
3/1.1 |
0.8-1 |
805 |
|
SF-1.2 |
1.2 |
1100X1100X1100 |
450 |
312 |
0.6-1.2 |
5.5/1.1 |
1-1.2 |
1373 |
|
SF-2.8 |
2.8 |
1700X1600X1150 |
550 |
268 |
1.5-3.5 |
11/1.5 |
1-1.2 |
2138 |
|
SF-4 |
4 |
1850X2050X1200 |
650 |
220 |
2-4 |
15/1.5 |
1-1.2 |
2582 |
|
SF-8 |
8 |
2200X2900X1400 |
760 |
191 |
4-8 |
30/1.5 |
0.9-1 |
4129 |
|
SF-10 |
10 |
2200X2900X1700 |
760 |
191 |
5-10 |
30/1.5 |
0.9-1 |
4486 |
|
SF-16 |
16 |
2850X3800X1700 |
760 |
191 |
5-16 |
30X2/1.5 |
0.9-1 |
8320 |
|
SF-20 |
20 |
2850X3800X2000 |
760 |
191 |
5-20 |
30X2/1.5 |
0.9-1 |
9828 |
