Description

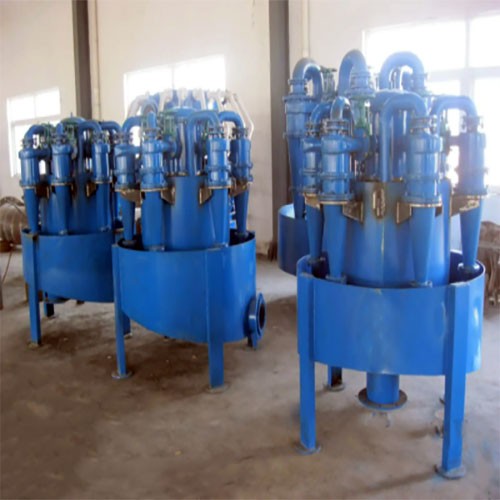

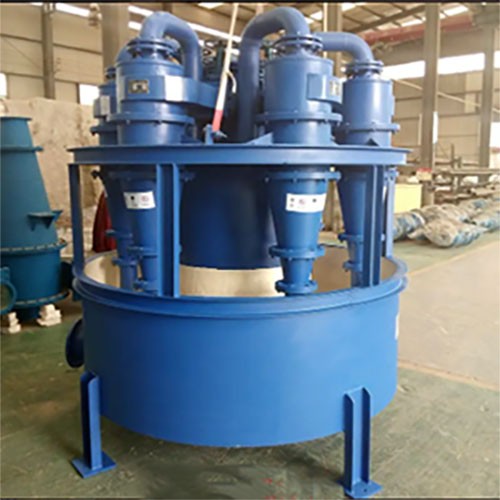

Hydro-cyclone
Hydro-cyclone is used for separating coarse particles to remove the heavier sediment and other substances in sewage devices. It is also used for sludge de-watering.It has two types of pressure and gravity, and is often made by using a circular cylinder structure or metal tube.By gravity or by the pressure,water enters along the tangential structure (or a metal tube’s upper part).under the action of centrifugal force,coarse particles are thrown to the wall and rotates downward and are discharged together with the pus.Smaller particulate rotates to certain extent and then discharge together with the secondary swirling flow.
Technical Parameter:
|
Model |
Diameter (mm) |
Overflow Pipe Dia (mm) |
Underflow Mouth Dia. (mm) |
Max Feeding Size (mm) |
Feeding Pressure (MPa) |
Capacity (m³/h) |
Classification Size (μm) |
Dimension (mm) |
|
FX350 |
350 |
80-120 |
30-70 |
6 |
0.04-0.3 |
60-100 |
50-150 |
775X605X1765 |
|
FX300 |
300 |
65-115 |
20-50 |
5 |
0.04-0.3 |
45-85 |
50-150 |
550X480X1415 |
|
FX250 |
250 |
60-100 |
16-45 |
3 |
0.06-0.35 |
40-60 |
40-100 |
490X415X1215 |
|
FX200 |
200 |
40-65 |
16-32 |
2 |
0.06-0.35 |
25-40 |
40-100 |
400X365X1030 |
|
FX150 |
150 |
30-45 |
8-22 |
1.5 |
0.06-0.35 |
11-20 |
30-74 |
3103X310X920 |
|
FX100 |
100 |
20-40 |
8-18 |
1 |
0.06-0.35 |
5-12 |
20-100 |
260X210X525 |
