Description

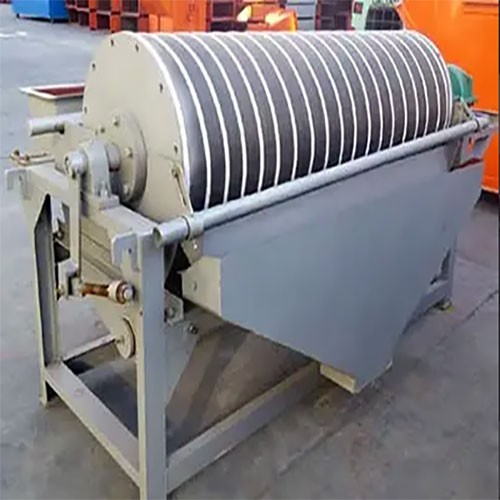

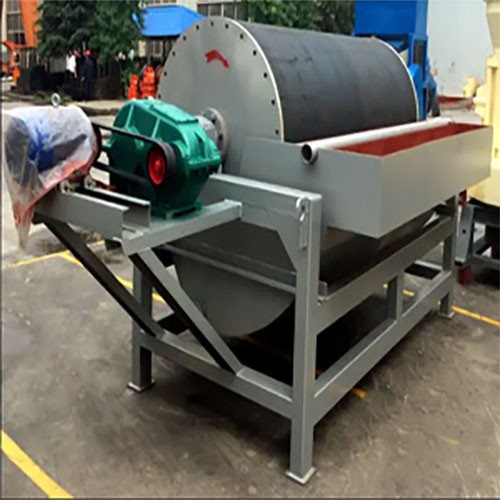

Magnetic Separator is mainly used in wet separating of the fine minerals with strong ferromagnetism.The wet-type drum permanent magnetic separator is mainly suitable for wet separating of the following ores with the sizes less than 3mm,which are magnetite,magnetic pyrite,baking ore,ilmenite and so on. It also can be used for removing Fe procession of coal,nonmetallic mineral and construction materials.According to customer requirements, we can provide fair current and semi-counter-current types separator with different magnetic strength.
CTB is mainly suitable for rough wet separating and scavenging with the size between 0.5-0mm,especially for concentrating large ore with the size between 0.15-0mm.
CTS is mainly suitable for rough separating and concentrating with the size between 0-6mm.
Technical Parameter:
|
Model |
Cylinder Diameter (mm) |
Cylinder Length (mm) |
Rotary Speed of Cylinder (r/min)
|
Capacity (t/h) |
Feed Size (mm) |
Power(kw) |
Weight(kg) |
|
CTB612/CTS612 |
600 |
1200 |
≤35 |
10-20 |
0-2 |
1.5 |
1445 |
|
CTB618/CTS618 |
600 |
1800 |
≤35 |
15-30 |
0-2 |
2.2 |
1655 |
|
CTB718/CTS718 |
750 |
1800 |
≤35 |
20-45 |
0-2 |
2.2 |
1992 |
|
CTB918/CTS918 |
900 |
1800 |
≤35 |
40-60 |
0-3 |
3 |
3162 |
|
CTB924/CTS924 |
900 |
2400 |
≤28 |
45-70 |
0-3 |
4 |
3887 |
|
CTB1024/CTS1024 |
1050 |
2400 |
≤20 |
60-120 |
0-3 |
5.5 |
4319 |
|
CTB1218/CTS1218 |
1200 |
1800 |
≤18 |
80-140 |
0-3 |
5.5 |
5263 |
|
CTB1230/CTS1230 |
1200 |
3000 |
≤18 |
100-180 |
0-3 |
7.5 |
6325 |
|
CTB1530/CTS1530 |
1500 |
3000 |
≤16 |
150-260 |
0-3 |
11 |
9500 |
