Description

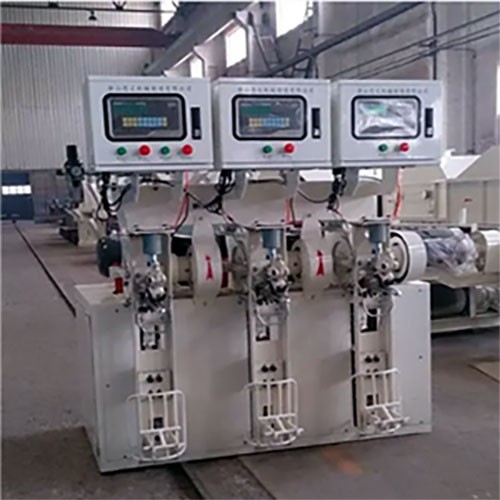

Fixed cement packing machine series BGYJ-QZ is the pioneer product of our company, it is the replacement of the current fixed cement packaging equipment, meets JC581-1995 standard.
This series packing machine adopts micro-computer to control the filling progress: The worker inserts the bag on the sprout first, at the same time control mechanism starts control the filling progress by the signal sent from the bag inserting detection device, then the packing machine completes the progresses including bag filling, weighting, dropping automatically.
This series with high automation level, mechanical & electrical integration, high efficiency and energy saving, accurate weighing, stable performance, good sealing, simple operation, convenient maintenance, durable quality, and etc. It is the preferred equipment of cement plants.
Technical Parameter:
|
Parameter Name |
Unit |
Data |
|||||||
|
Model |
|||||||||
|
BGYJ |
|||||||||
|
-1 |
-2 |
-3 |
-4 |
||||||
|
Qty of spouts |
pc |
1 |
2 |
3 |
4 |
||||
|
Filling capacity per spout |
t/h |
15 |
30 |
45 |
60 |
||||
|
Weight of per packed bag |
kg |
50 |
|||||||
|
Weighing accuracy |
Weight error per bag |
kg |
±0.35 |
||||||
|
Qualified rate |
% |
95 |
|||||||
|
Operation power |
Discharging motor |
Model |
|
YX3-112M-4 |
|||||
|
Power |
kw |
4 |
2×4 |
3×4 |
4×4 |
||||
|
Feeder |
Motor |
Model |
|
YX3-90L-4 |
YX3-100L-4 |
YX3-112M-4 |
YX3-112M-4 |
||
|
Power |
kw |
1.5 |
2.2 |
4 |
4 |
||||
|
Reducer |
Model |
|
XWD3-23-1.5 |
XWD4-23-2.2 |
XWD4-23-4 |
XWD4-23-4 |
|||
|
Total weight |
kg |
305.5 |
885.5 |
1205.5 |
1555.5 |
||||
|
Dimension (L×W×H) |
mm |
848×1300×1770 |
1211×1300×1770 |
1710×1300×1770 |
2060×1300×1770 |
||||
|
Gate open-close |
Solenoid valve type |
|
4V310 10A |
||||||
|
Cylinder type |
|
SCT63*30*25-QH225A |
|||||||
|
Working air pressure |
MPa |
0.6 |
|||||||
